In the demanding world of retail and hospitality, the POS (Point of Sale) terminal is the operational heartbeat of the business. While much of the industry’s focus remains on software interfaces or processor speeds, the true foundation of system uptime lies in a component that remains invisible until it fails: the Power Supply Unit (PSU).

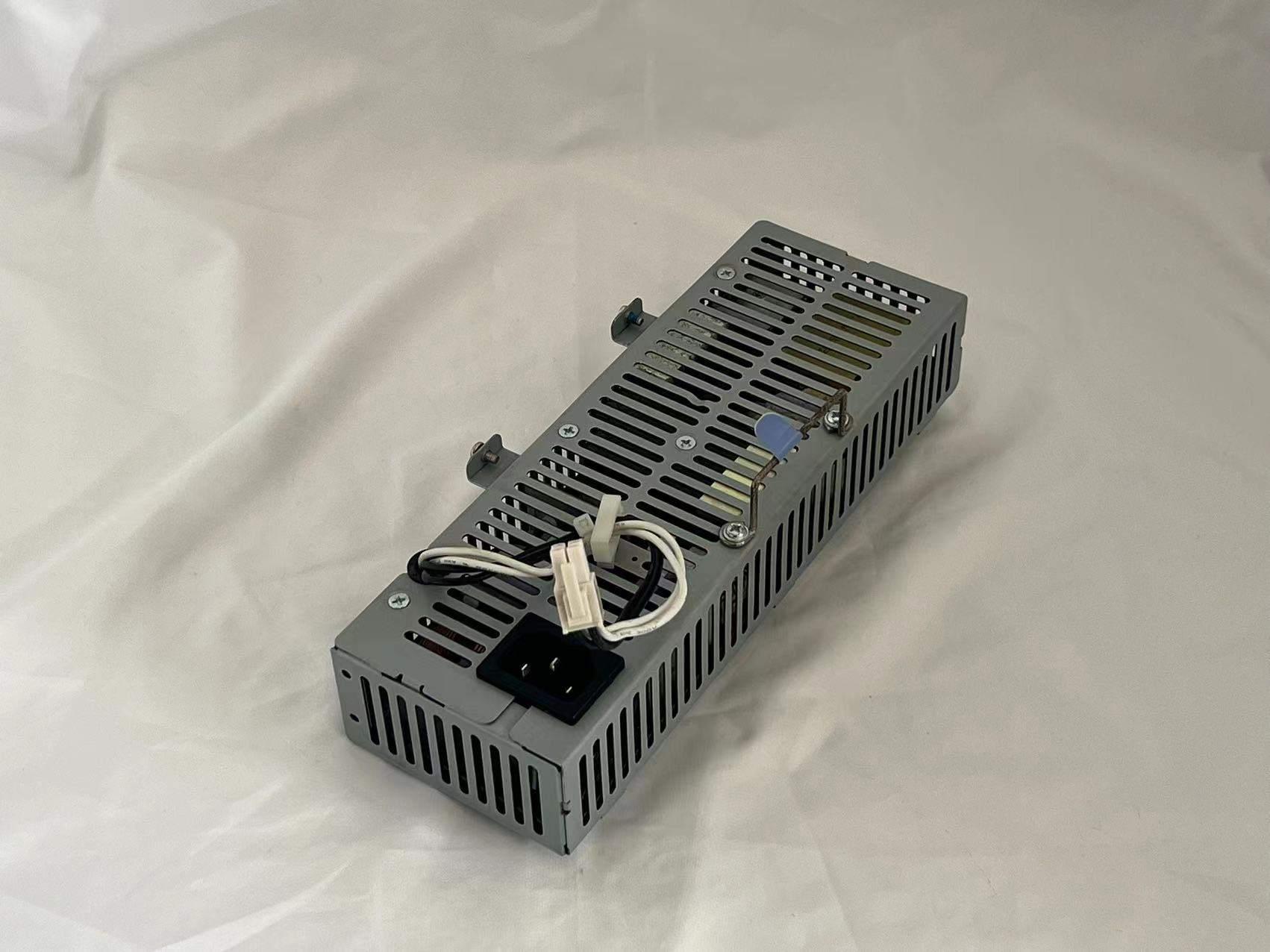

From legacy IBM/Toshiba systems to modern all-in-one touch terminals, the PSU is responsible for more than just “turning the machine on.” It is a complex DC-to-DC and AC-to-DC conversion hub that must provide clean, stable energy to a diverse array of peripherals—thermal printers, magnetic stripe readers, pole displays, and cash drawers. This guide explores the engineering of POS power supplies, the shift toward modern standards, and why the PSU is the ultimate guardian of your retail data.
1. Beyond the Desktop: Why POS Power Supplies are Unique
A standard consumer PC power supply operates in a controlled office environment. In contrast, a POS terminal power supply must withstand the “Frontline Reality”:
-
Volatile Power Grids: Retail environments often share circuits with heavy machinery, such as industrial refrigerators or air conditioners, causing frequent voltage spikes and brownouts.
-
Peripheral Surge Demands: A POS PSU doesn’t just power a CPU; it must provide a sudden, high-amperage burst of +24V or +12V to trigger a cash drawer solenoid or drive a high-speed thermal paper cutter.
-
Thermal Constraints: Many POS terminals are fanless to prevent dust intake. This requires the PSU to have exceptional thermal efficiency to avoid overheating in cramped, under-counter spaces.
2. Technical Core: Understanding Voltage Rails and SMPS
Modern POS terminals utilize Switched-Mode Power Supply (SMPS) technology. Unlike old-fashioned linear supplies, SMPS uses high-frequency switching to convert power, making the unit compact and highly efficient.
The Power of the +12V and +24V Rails
In a typical computer, the +12V rail is the workhorse for the CPU and GPU. However, in the POS ecosystem:
-
+12V Rail: Powers the logic board, SSD, and integrated touchscreens.
-
+24V Rail: This is often the “printer rail.” Thermal printers (like the Epson TM-T88 or Toshiba 4610) require a dedicated 24V supply to generate the heat needed for thermal imaging and the mechanical force for the auto-cutter.
-
+5VSB (Standby): Critical for “Wake-on-LAN” functions, allowing IT managers to push software updates to terminals overnight while they are nominally “off.”
3. The Gold Standard: Efficiency and 80 Plus Certification
For a retailer operating 500 stores with 4 terminals each, PSU efficiency isn’t just a technical spec—它 is a massive line item in the utility bill.
We categorize POS power supplies based on their 80 Plus Certification:
-
80 Plus Gold/Platinum: These units convert at least 90% of the AC power into usable DC power. The remaining 10% is lost as heat.
-
The Business Impact: Higher efficiency means less heat. In fanless POS designs (like the Toshiba TCx™ 300), a more efficient PSU extends the lifespan of the motherboard capacitors by keeping internal temperatures low.
4. Evolution of Standards: From ATX to 12V-Only Systems
The history of POS terminals mirrors the evolution of the ATX standard mentioned in Wikipedia’s technical references.
-
Legacy ATX (20-pin/24-pin): These provided a mix of +3.3V, +5V, and +12V. While versatile, they were inefficient because modern processors do most of their own voltage regulation internally.
-
The 12V-Only Future (ATX12VO): Leading manufacturers like Toshiba and HP are moving toward “Single Rail” designs. By providing only +12V to the motherboard and letting the board convert lower voltages for USB ports, the system becomes more energy-efficient and reduces cable clutter—a vital factor in “small form factor” POS terminals.
5. Circuit Protection: The Five Pillars of POS Safety
A cheap, unbranded power supply is a liability. Professional-grade POS terminals incorporate five essential hardware protections to prevent catastrophic failure:
-
OVP (Over Voltage Protection): Shuts down the PSU if the output exceeds specified limits, protecting the expensive motherboard.
-
OCP (Over Current Protection): Critical for POS systems when a jammed cash drawer tries to draw excessive current.
-
SCP (Short Circuit Protection): Instantly kills power if a liquid spill occurs on the counter, preventing a fire.
-
OTP (Over Temperature Protection): Ensures the unit shuts down if air vents are blocked by receipt paper or dust.
-
Active PFC (Power Factor Correction): Allows the POS to operate on any global voltage (from 90V to 264V), making it a “Universal” solution for international retail chains.
6. Identifying Fraud: The “Peak Power” Trap
One of the most common issues in the POS repair parts market is Power Fraud. Many aftermarket PSUs are labeled with “300W Peak Power.” However, in a retail environment, “Peak” is irrelevant.
A POS terminal needs Continuous Rated Power. If a printer and a cash drawer trigger simultaneously, a low-quality PSU labeled 300W might fail because its continuous capacity is only 150W. When sourcing replacement parts, always verify the Continuous Wattage and the Amperage available specifically on the +12V and +24V lines.
7. Conclusion: Investing in the “Heart” of the System
The POS terminal is the final point of contact between your business and your customer. A failure here doesn’t just halt a transaction; it damages brand trust.
By understanding the engineering behind the Power Supply Unit—prioritizing Active PFC, 80 Plus Efficiency, and Strict Rail Regulation—retailers can move from a reactive “break-fix” mentality to a proactive “reliability-first” strategy. Whether you are maintaining a fleet of legacy IBM terminals or deploying the latest Toshiba TCx™ systems, remember: your software is only as stable as the power that drives it.
Technical Procurement Checklist for POS PSUs:
-
[ ] Certification: Is it 80 Plus Gold or higher?
-
[ ] Protection: Does it have OVP, OCP, and SCP?
-
[ ] Input: Does it support Wide-Range Active PFC (90-264V)?
-
[ ] Compatibility: Does it meet the specific +24V amperage requirements for your receipt printers?
-
[ ] Warranty: Does the manufacturer provide at least a 3-year MTBF guarantee?
