In modern retail and hospitality environments, Point of Sale (POS) systems must operate continuously with speed, accuracy, and reliability. Among the many POS printers used worldwide, the TOSHIBA 6145-1TN Single Station Printer stands out as a high-performance thermal receipt printer designed for demanding commercial applications. To ensure long-term stability, print quality, and minimal downtime, high-quality IBM/TOSHIBA POS parts and accessories play a critical role.
This article provides a comprehensive overview of the TOSHIBA 6145-1TN, its technical features, typical applications, and the most important replacement parts and accessories required for maintenance and repair.
Overview of TOSHIBA 6145-1TN
The TOSHIBA 6145-1TN is part of Toshiba’s TCx® Single Station Printer series, developed specifically for enterprise-level POS systems. It is widely deployed in retail stores, supermarkets, restaurants, and fuel stations where fast receipt printing and high durability are essential.
As a direct thermal printer, the 6145-1TN eliminates the need for ink or ribbon, reducing operating costs while maintaining consistent output quality. Its compact design, high printing speed, and broad system compatibility make it a preferred choice for businesses running IBM and Toshiba POS platforms.
Key Specifications of TOSHIBA 6145-1TN
Printing Performance
The TOSHIBA 6145-1TN delivers exceptional printing performance designed for high-volume environments:
-
Printing technology: Direct thermal
-
Resolution: 203 dpi
-
Maximum printing speed: Up to 406 mm/s
-
Grayscale support: Up to 16 levels
This high speed ensures that checkout lines move quickly, improving customer experience during peak hours.
Paper Handling Capabilities
Efficient paper handling is essential for retail operations, and the TOSHIBA 6145-1TN excels in this area:
-
Supported paper width: 80 mm (standard) and 58 mm (optional)
-
Maximum paper roll diameter: 83 mm
-
Paper thickness: 40–99 μm
-
Loading method: Drop-in, top-load design
-
Sensors: Paper end and paper near-end sensors
These features reduce paper replacement time and help prevent unexpected interruptions during transactions.
Connectivity and Interface Options
The TOSHIBA 6145-1TN is designed for flexible system integration and supports multiple connectivity options:
-
Standard interfaces:
-
USB 2.0
-
Powered USB (24V)
-
-
Optional interfaces:
-
Ethernet (LAN)
-
Wireless LAN (Wi-Fi)
-
RS-232 serial port
-
-
Cash drawer support: Dual RJ12 ports
-
Virtual COM Port support
This wide range of interface options allows the printer to integrate seamlessly with both legacy and modern POS systems.
Durability and Reliability
Durability is a defining feature of the TOSHIBA 6145-1TN, making it suitable for continuous commercial use:
-
Thermal printhead life: Up to 200 km
-
Auto cutter life: Up to 3 million cuts
-
Industrial-grade construction
-
ENERGY STAR® certified for low power consumption
To achieve maximum lifespan, Toshiba recommends using certified thermal paper and replacing worn components with high-quality IBM/TOSHIBA POS parts and accessories.
Operating Systems and Driver Support
The TOSHIBA 6145-1TN supports a wide range of operating systems and POS environments:
-
Supported operating systems:
-
Windows 7 / 8.1 / 10
-
POSReady
-
IBM 4690 OS
-
TCx® Sky
-
Linux (SUSE Linux Enterprise)
-
-
Driver and SDK support:
-
Windows drivers
-
OPOS / JavaPOS
-
iOS and Android SDKs
-
This compatibility ensures smooth deployment across retail chains using IBM or Toshiba POS infrastructures.
Typical Applications of TOSHIBA 6145-1TN
Due to its reliability and performance, the TOSHIBA 6145-1TN is widely used in:
-
Retail POS systems
-
Supermarkets and hypermarkets
-
Convenience stores
-
Restaurants and quick-service outlets
-
Fuel stations
-
Specialty retail chains
Its ability to handle high transaction volumes makes it ideal for environments where downtime is not an option.
Common Replacement Parts for TOSHIBA 6145-1TN
Like all high-usage POS devices, the TOSHIBA 6145-1TN requires periodic maintenance. Having access to reliable IBM/TOSHIBA POS parts and accessories is essential for extending the printer’s lifespan.

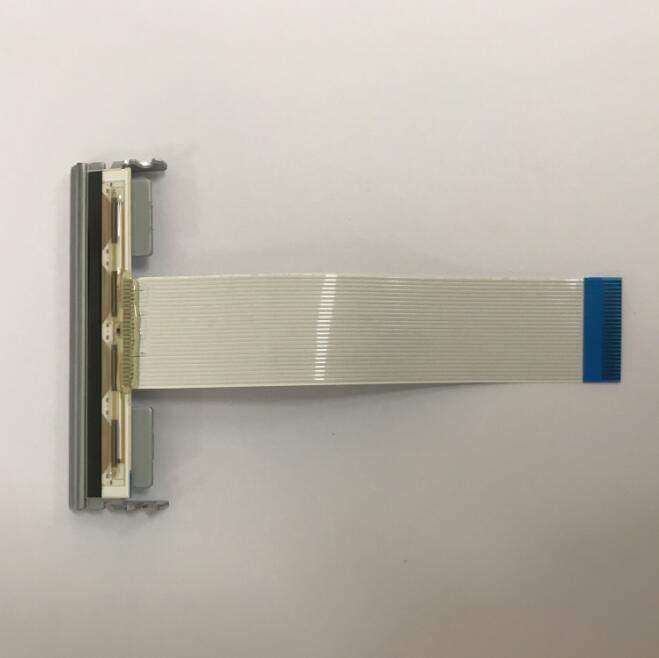

Thermal Printhead
The TOSHIBA 6145-1TN thermal printhead is one of the most critical components. Over time, print quality may degrade due to wear, dust, or improper paper usage. Replacing the printhead restores sharp text, clear barcodes, and consistent graphics.
Auto Cutter Assembly
The auto cutter is responsible for clean and accurate receipt cutting. A worn cutter can cause paper jams or incomplete cuts, leading to operational delays.
Printhead Cable / FPC
The printhead flat cable (FPC) ensures stable signal transmission between the mainboard and the printhead. Damaged or aging cables can cause intermittent printing or error codes.
Power Adapter
Using a stable and compatible power adapter is essential for protecting internal components and ensuring consistent performance.
Interface Cables and Accessories
USB, Powered USB, Ethernet, and serial cables must meet proper specifications to avoid communication issues and data loss.
Maintenance Tips to Extend Printer Life
Proper maintenance can significantly reduce repair costs and downtime:
-
Use high-quality thermal paper to minimize printhead wear
-
Clean the thermal printhead regularly with approved cleaning tools
-
Avoid exposing the printer to excessive heat, dust, or humidity
-
Replace worn parts such as printheads and cutters promptly
-
Use certified or high-quality compatible IBM/TOSHIBA POS accessories
Preventive maintenance ensures stable operation and prolongs the life of the printer.
Why Choose Original or High-Quality Compatible IBM/TOSHIBA POS Parts
When maintaining the TOSHIBA 6145-1TN, choosing the right parts is crucial:
-
Original parts ensure perfect compatibility and maximum lifespan
-
High-quality compatible parts provide cost-effective solutions without sacrificing performance
-
Reliable parts reduce downtime and service calls
-
Consistent print quality maintains brand image and customer satisfaction
For POS repair companies, distributors, and system integrators, sourcing dependable IBM/TOSHIBA POS parts and accessories is a key factor in delivering professional service.
Conclusion
The TOSHIBA 6145-1TN Single Station Printer is a powerful, durable, and versatile thermal receipt printer designed for enterprise POS environments. Its high printing speed, flexible connectivity, and long service life make it a trusted solution across global retail and hospitality markets.
However, long-term performance depends heavily on proper maintenance and the availability of reliable IBM/TOSHIBA POS parts and accessories, including thermal printheads, cutters, cables, and power supplies. By using original or high-quality compatible parts and following best maintenance practices, businesses can maximize uptime, reduce operational costs, and ensure smooth POS operations for years to come.
